Door Switch
PBS-25B Freezer Door Push Switch
Specifications
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. There are many color of button to choose from.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. There are many color of button to choose from.
Datasheet
| PBS-25B Freezer Door Push Switch related product, pls check the detailed information as below: | |||
| PBS-25B： | OFF-(ON) | ||
| PBS-25C: | ON-(OFF) | ||
| Check the datasheet below: | |||
| Rating: | 1A 250VAC | Contact Resistance: | 100mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Function: | OFF-(ON) or ON-(OFF) |
| Dielectric strength: | 500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
PBS-29B Refrigerator Door Push Switch
Specifications
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
There are many color of button to choose from.
Datasheet
| Rating: | 3A 250VAC | Contact Resistance: | 100mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Function: | OFF-(ON) |
| Dielectric strength: | 500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
PBS-35B Light Controlled Door Switch
Specifications
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
There are many color of button to choose from.
Datasheet
| Rating: | 3A 125VAC/1A 250VAC | Contact Resistance: | 100mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Function: | OFF-(ON) |
| Dielectric strength: | 500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
Drawing
PBS-35C Cabinet Door Switch
Specifications
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
There are many color of button to choose from.
Datasheet
| Rating: | 3A 125VAC/1A 250VAC | Contact Resistance: | 100mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Function: | ON-(OFF) |
| Dielectric strength: | 500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |

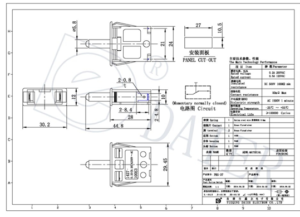

Drawing
PBS-37 Momentary Door Switch
Specifications
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
There are many color of button to choose from.
Datasheet
| Rating: | 3A 125VAC/0.5A 250VAC | Contact Resistance: | 100mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Function: | ON-(OFF) |
| Dielectric strength: | 500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
PBS-19 Door Lamp Push Button Switch
Specifications
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
There are many color of button to choose from.
Datasheet
| Rating: | 10A 125VAC/6A 250VAC | Contact Resistance: | 100mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Function: | ON-OFF |
| Dielectric strength: | 500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
