Slide Switch

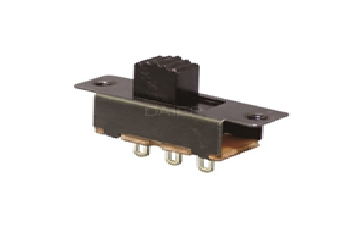

SS-12F25 3 Pin Slide Switch
Specifications
Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.
Datasheet
| Rating: | 0.3A 30VDC | Electrical Life: | ≥ 10,000 Cycles, Unloading 15-18 cycles per min |
| Contact Resistance: | 10mΩ max. initial @2-4 VDC,100 mA | Insulation Resistance: | 1000mΩ min |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |

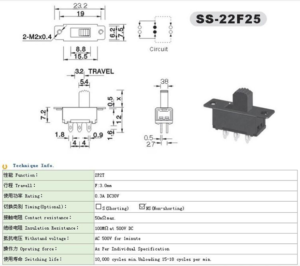

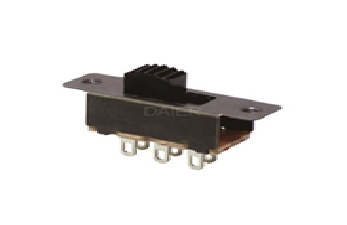

SS-22F25 Slide Switch Connection
Specifications
Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.
Datasheet
| Rating: | 0.3A 30VDC | Electrical Life: | ≥ 10,000 Cycles, Unloading 15-18 cycles per min |
| Contact Resistance: | 10mΩ max. initial @2-4 VDC,100 mA | Insulation Resistance: | 1000mΩ min |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
Drawing

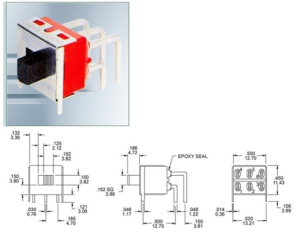

SS8-6 Miniature Slide Switches
Specifications
Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.
Datasheet
| Rating: | 3A 250VAC | Electrical Life: | ≥ 10,000 Cycles, Unloading 15-18 cycles per min |
| Contact Resistance: | 10mΩ max. initial @2-4 VDC,100 mA | Insulation Resistance: | 1000mΩ min |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
Drawing
SS-23N02 Miniature Switch
Specifications
Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.
Datasheet
| Rating: | 3A 250VAC | Electrical Life: | ≥ 10,000 Cycles, Unloading 15-18 cycles per min |
| Contact Resistance: | 10mΩ max. initial @2-4 VDC,100 mA | Insulation Resistance: | 1000mΩ min |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
Drawing
SS-12N03 Spdt Slide Switch
Specifications
Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.
Datasheet
| Rating: | 5A 250VAC | Electrical Life: | ≥ 10,000 Cycles, Unloading 15-18 cycles per min |
| Contact Resistance: | 10mΩ max. initial @2-4 VDC,100 mA | Insulation Resistance: | 1000mΩ min |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |

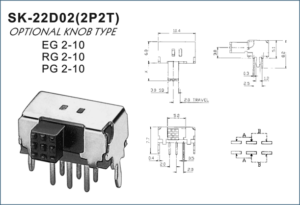

SK-22D02 Slide Switch Function
Specifications
Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.
Datasheet
| Rating: | 0.3A 30VDC | Electrical Life: | ≥ 10,000 Cycles, Unloading 15-18 cycles per min |
| Contact Resistance: | 10mΩ max. initial @2-4 VDC,100 mA | Insulation Resistance: | 1000mΩ min |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
Drawing
